EFFICIENT. RELIABLE. AFFORDABLE

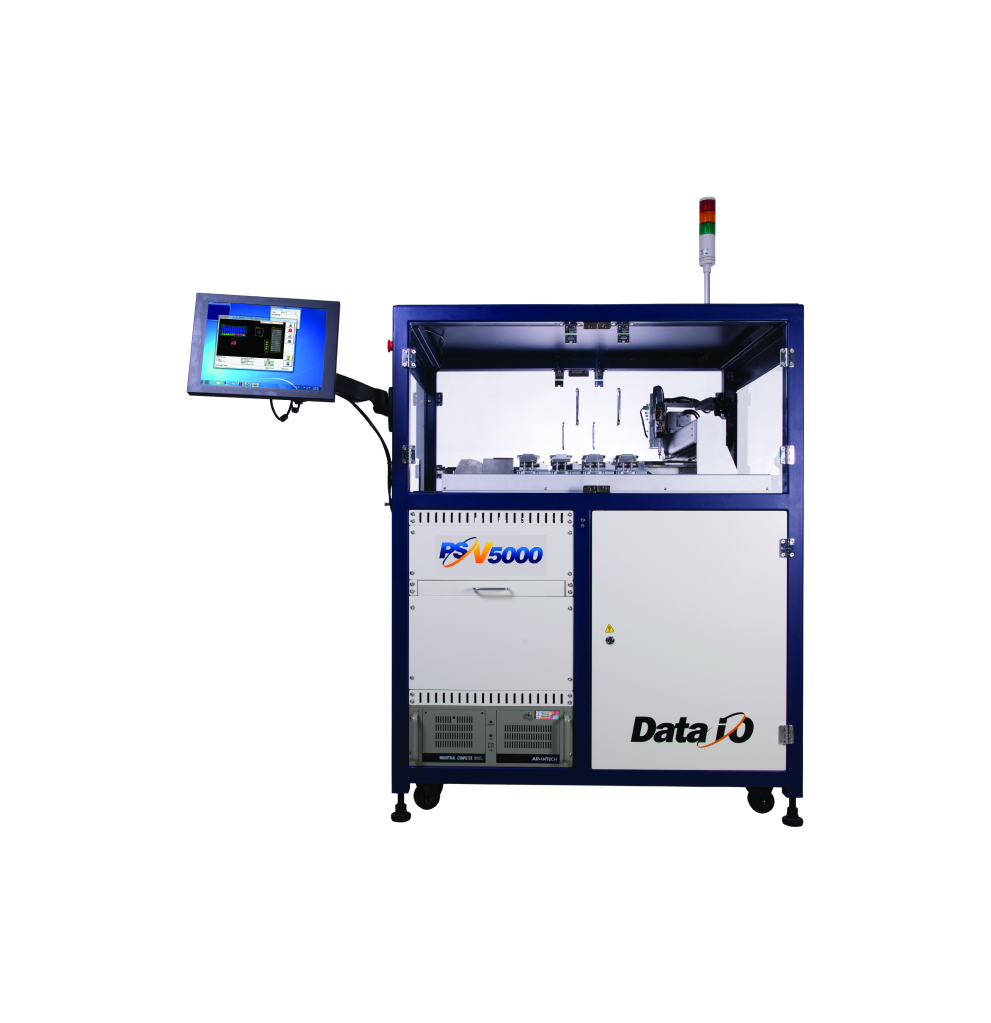

The PSV5000 offers high-performance automated device programming at an affordable price, designed for productivity, scalability, and reliability.
Key Features
Productivity and Scalability
Handler Throughput : 1,300 per hour
Handling Method : 1 vacuum nozzle
Handling Precision : ± .02mm
Handling Size
- Minimum : 2mm x 3mm
- Maximum : 42.5mm x 42.5mm
Programmer (FCIII) : Expandable up to 24 sites
Programmer (LumenX) : Expandable up to 40 sites
Material Input/Output System Options
Supported Packages
: PLCC, SOIC, SON, WSON,
SSOP, CSP, BGA, uBGA, FPGA, QFP,
TQFP, TSOP, PoP
Auto Tray Feeder : JEDEC standard, 20 trays
Reel Feeder : 8mm to 44mm
Reel Packer :8mm to 44mm
Tube Feeding and Packing Machines
Fiber Laser Marking System
Upward-facing Vision Camera
Reliability
High-Intensity Connector (HIC) Adapter designed for optimum quality and production
Managed by CH700 Intelligent System : Covers all aspects of production
PSV5000, PSV7000 exclusive PNP head : Developed by Data I/O
Vision System : Minimizes errors in picked devices
Most Reliable Globally
FlashCOREIII Programming Engine
LumenX programming engine designed for high-capacity memory
Cost Efficiency
Up to 50% cost reduction per memory unit
Minimized workforce requirements
Zero human error occurrence
Adapter compatibility across all Data I/O equipment
PSV5000: All components are selectable/removable
OPTION
I/O Media Options
Reel Feeder : Supports 8mm to 44mm
Reel Packer : Adjustable for 8mm to 44mm, capable of rewinding empty carrier tapes
Single Tray Feeder In/Out : Supports up to 20 JEDEC trays
Manual Tray : Operable without special tools, supports up to 2 manual trays
Tube Feeding/Packing Machine : Motor control for tube feeding and packing
Marking Options
Laser Marking System : High precision, supports simultaneous marking of two memories
Ink Dot Marking System : Supports ink dot marking on components sized 4x4mm
Inspection Features
2D Reel Packing Vision System : Inspects laser marks and the orientation of memories during reel packing
Additional Options
Ionizer : Neutralizes charged surfaces by continuously generating positive and negative ions throughout the workspace
Barcode Scanner : Minimizes operator errors by selecting the correct programming operation using a barcode scanner
SentriX Security Service : Provides security services for protecting IoT products
Additional Services : Server serial numbering, MES integration, command-line interface

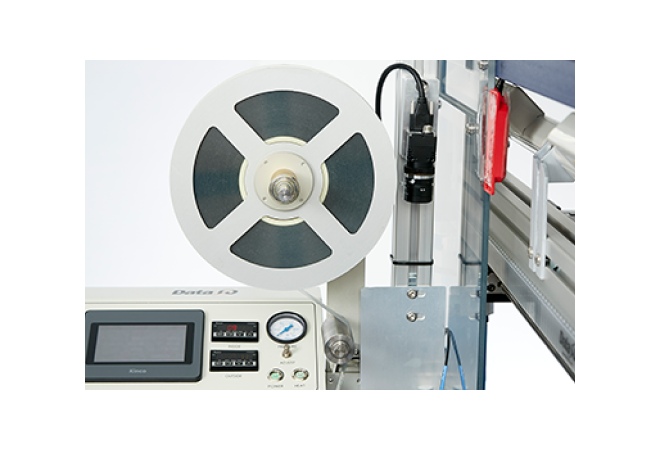

2D Reel Packing Vision System
Inspects laser marks and memory orientation during reel packing

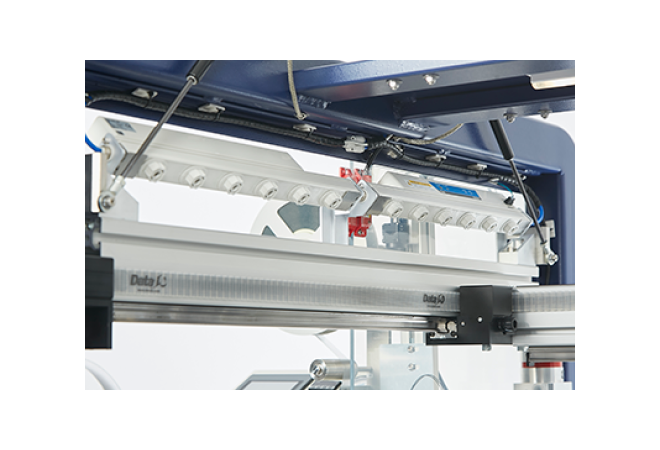

Ionizer
Neutralizes charged surfaces throughout the workspace by continuously generating ions

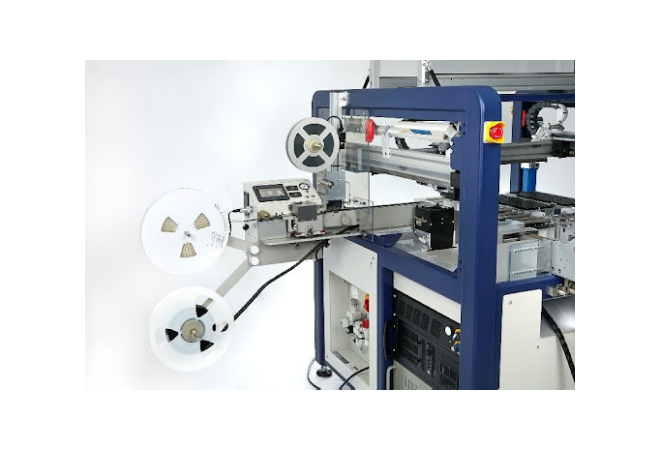

Tube Feeding/Packing Machine
Provides motor control for tube feeding and packing support

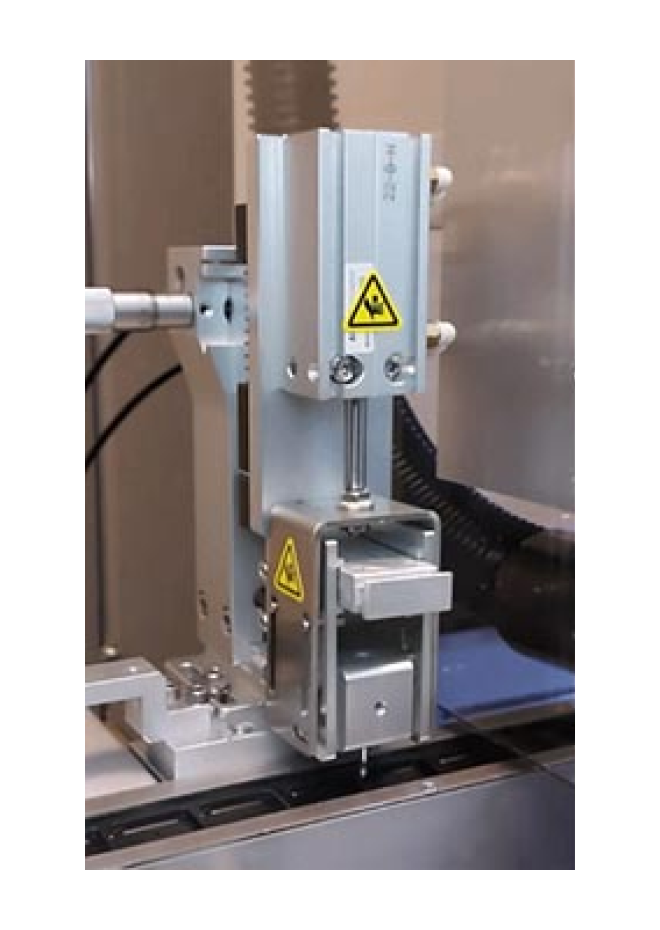

Ink Dot Marking System
Supports ink dot marking for parts sized 4x4mm
Video
PSV5000 Introductory Video
